TPL5000DGSR
Nano power programmable timer with watchdog functionality
Factory Direct Sales, Lower Price for Bulk Purchase
Min. Order: 3500
Packaging information
Package | Pins

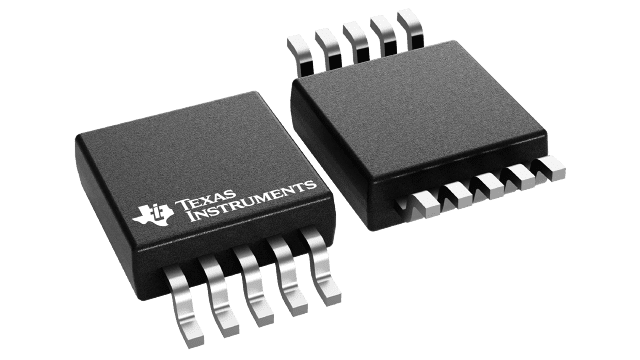

VSSOP (DGS) | 10
Operating temperature range (°C)
-40 to 105
Package qty | Carrier
3,500/Reel
Description
Reviews
Features for the TPL5000
- Supply Voltage from1.8 V to 5.0 V
- Current Consumption 30 nA (typical, at 2.5 V)
- Watchdog Functionality
- Reset Functionality
- Selectable Timer Intervals 1 to 64 s
Description for the TPL5000
The TPL5000 is a long-term timer IC optimized for low-power applications. The TPL5000 can replace a micro controller–s (µC) internal timer, allowing the µC to stay in low-power sleep mode instead of running a timer, providing a total power consumption reduction of 60 to 80%. The TPL5000 is designed for use in interrupt-driven applications and provides selectable timing from 1 second to 64 seconds. Some standards (such as EN50271) require implementation of a watchdog function for safety. The TPL5000 realizes this watchdog function without consuming additional power. The TPL5000 can also monitor a battery management IC via a power-good digital input and reset the microcontroller, if necessary. The device is packaged in a 10-pin VSSOP package.
