TPD1E04U04DPLR

• IEC 61000-4-2 Level 4 ESD Protection
  • ±16-kV Contact Discharge
  • ±16-kV Air Gap Discharge
• IEC 61000-4-4 EFT Protection
  • 80 A (5/50 ns)
• IEC 61000-4-5 Surge Protection
  • 2.5 A (8/20 µs)
• IO Capacitance: 0.5-pF (Typ), 0.65-pF (Max)
• Ultra-low ESD Clamping Voltage
  • 8.9 V at 16-A TLP
  • –4.6 V at –16-A TLP
• Low RDYN
  • 0.25 Ω IO to GND
  • 0.18 Ω GND to IO
• DC Breakdown Voltage: 5 V (Minimum)
• Ultra-low Leakage Current: 10 nA (Maximum)
• Supports High Speed Interfaces up to 6 Gbps
• Industrial Temperature Range: –40°C to +125°C
• Industry Standard 0402 and 0201 Packages

The TPD1E04U04 is a unidirectional TVS ESD protection diode for HDMI 2.0 and USB 3.0 circuit protection. The TPD1E04U04 is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (Level 4).

This device features a 0.5-pF IO capacitance making it ideal for protecting high-speed interfaces up to 6 Gbps such as HDMI 2.0 and USB 3.0. The low dynamic resistance and ultra-low clamping voltage ensure system level protection against transient events for sensitive SoCs.

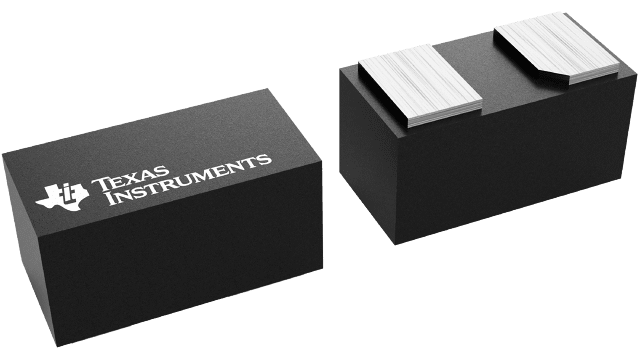

The TPD1E04U04 is offered in the industry standard 0402 (DPY) and 0201 (DPL) packages.
