TMP108AIYFFR

• Dynamically-programmable limit window with under- and overtemperature alerts
• Accuracy:
  ±0.75°C (maximum) from –20°C to +85°C
  ±1°C (maximum) from –40°C to +125°C
• Low quiescent current:
  6 µA active (maximum) from –40°C to +125°C
• Supply range: 1.4 V to 3.6 V
• Resolution: 12 bits (0.0625°C)

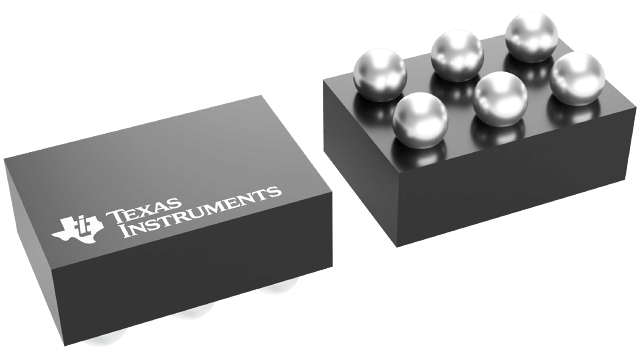

• Package: 1.2-mm × 0.8-mm, 6-ball WCSP

TMP108 is a digital-output temperature sensor with a dynamically-programmable limit window, and under- and overtemperature alert functions. These features provide optimized temperature control without the need of frequent temperature readings by the controller or application processor.

The TMP108 features SMBus and two-wire interface compatibility, and allows up to four devices on one bus with the SMBus alert function.

The TMP108 is designed for thermal management optimization in a variety of consumer, computer, and environmental applications. The device is specified over a temperature range of –40°C to +125°C.
