TIOS1013DMWR

• Functional Safety-Capable

  • Documentation available to aid functional safety system design: TIOS101,TIOS1013, TIOS1015
• 7-V to 36-V Supply Voltage
• PNP, NPN or Push-Pull Configurable Output
• Low Residual Voltage of 1.75 V at 250 mA
• 50-mA to 350-mA Configurable Current Limit
• Tolerant to ±65-V Transients < 100 µs
• Reverse Polarity Protection of up to 60 V on VCC, OUT and GND
• Integrated EMC Protection on VCC and OUT
  • ±16 kV IEC 61000-4-2 ESD Contact Discharge
  • ±4 kV IEC 61000-4-4 Electrical Fast Transient
  • ±1.2 kV/500 Ω IEC 61000-4-5 Surge
• Fast Demagnetization of Inductive Loads up to 1.5 H
• Large Capacitive Load Driving Capability
• < 2.2-mA Quiescent Supply Current
• Integrated LDO Options for up to 20 mA Current
  • TIOS101: No LDO
  • TIOS1013: 3.3-V LDO
  • TIOS1015: 5-V LDO
• Overtemperature Warning and Thermal Protection
• Fault Indicator
• Extended Ambient Temperature: -40°C to 125°C

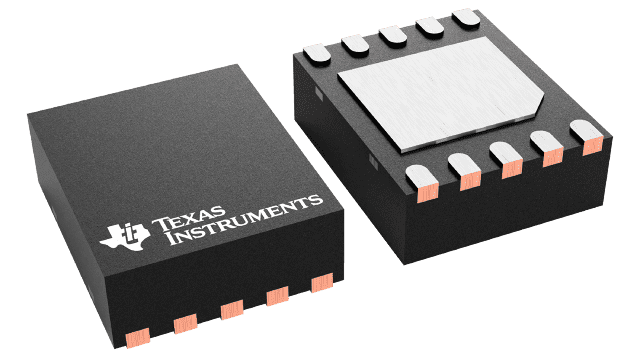

• 2.5 mm x 3 mm 10-pin VSON Package

The TIOS101(x) devices are configurable as high-side, low-side or push-pull drivers. These devices are capable of withstanding up to 1.2 kV (500 Ω) of IEC 61000-4-5 surge and feature integrated reverse polarity protection.

A simple pin-programmable interface allows easy interfacing to the controller circuits. The output current limit can be configured using an external resistor.

Fault reporting and internal protection functions are provided for under voltage, over circuit current and over temperature.
