SN74LVC2G66YZPR

• Available in the Texas Instruments
  NanoFree™ Package
• 1.65-V to 5.5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Max tpd of 0.8 ns at 3.3 V
• High On-Off Output Voltage Ratio
• High Degree of Linearity
• High Speed, Typically 0.5 ns
  (VCC = 3 V, CL = 50 pF)
• Rail-to-Rail Input/Output
• Low ON-State Resistance, Typically ≉6 Ω
  (VCC = 4.5 V)
• Latch-Up Performance Exceeds 100 mA Per
  JESD 78, Class II

This dual bilateral analog switch is designed for
1.65-V to 5.5-V VCC operation.

The SN74LVC2G66 device can handle both analog and digital signals. The SN74LVC2G66 device permits signals with amplitudes of up to 5.5 V (peak) to be transmitted in either direction.

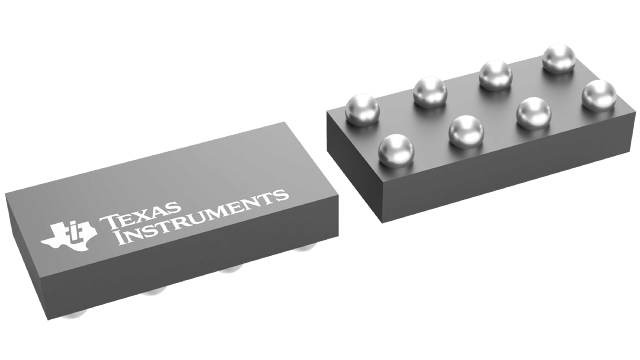

NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Each switch section has its own enable-input control (C). A high-level voltage applied to C turns on the associated switch section.

Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
