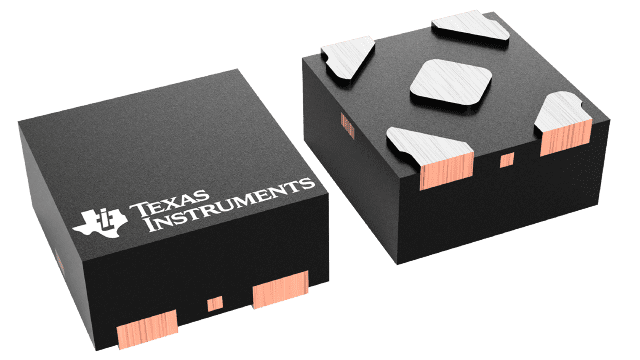

SN74LVC1G06DPWR

• ESD Protection Exceeds JESD 22
  • 2000-V Human Body Model (A114-A)
  • 200-V Machine Model (A115-A)
  • 1000-V Charged-Device Model (C101)
• Available in the Texas Instruments
  NanoFree™ Package
• Supports 5-V VCC Operation
• Input and Open-Drain Output Accept
  Voltages up to 5.5 V
• Maximum tpd of 4.5 ns at 3.3 V at 125°C
• Low Power Consumption, 10-µA Maximum ICC
• ±24-mA Output Drive at 3.3 V for open-drain devices
• Ioff Supports Partial-Power-Down Mode and Back-Drive Protection
• Latch-Up Performance Exceeds 100 mA Per
  JESD 78, Class II
• Can Be Used For Up or Down Translation
• Schmitt Trigger Action on All Ports

This single inverter buffer and driver is designed for 1.65-V to 5.5-V VCC operation.

NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

The output of the SN74LVC1G06 device is open-drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 32 mA.

This device is fully specified for partial-power-down applications using Ioff.The Ioff circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.
