LMK6CE05000CDLFR

• High-performance differential and single-ended output Oscillator, supporting any fixed frequency within the below range:
  • LMK6D: 1MHz to 400MHz, LVDS output
  • LMK6H: 1MHz to 400MHz, HCSL output
  • LMK6P: 1MHz to 400MHz, LVPECL output
  • LMK6C: 1MHz to 200MHz, LVCMOS output
• Ultra-low jitter:
  • LMK6D/LMK6H/LMK6P: 100fs typical / 125fs maximum RMS jitter at 156.25MHz (12kHz to 20MHz)
  • LMK6C: 350fs typical / 500fs maximum RMS jitter at 100MHz (12kHz to 20MHz)
  • LMK6H: PCIe Gen 1 to Gen 7 compliant
• ±25ppm total frequency stability inclusive of 10 years aging and all other factors

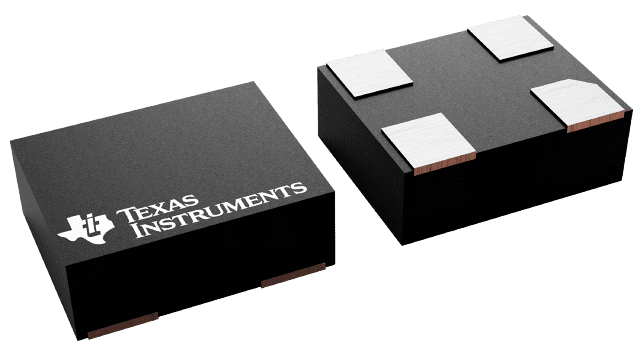

• Smallest industry standard DLE and DLF packages
• Support extended industrial temperature grade:
  • LMK6P/LMK6D/LMK6H: –40°C to 85°C
  • LMK6C: –40°C to 105°C
• Integrated LDO for robust supply noise immunity:
  • –72dBc PSRR at 500kHz ripple
• Start-up time: < 5ms
• Standard frequencies:
  • LVCMOS (MHz): 1, 2.04, 4, 8.192, 10, 12, 12.288, 16, 19.2, 20, 23.5, 24, 24.57, 25, 25.6, 26, 26.21, 27, 28.12, 32.768, 33.333, 40, 48, 49.15, 50, 54, 60, 65.53, 66, 74.25, 76.8, 80, 100, 108, 125, 133.330 and 156.25
  • Differential (MHz): 25, 26, 32.5, 50, 51.84, 54, 65, 76.8, 80, 100, 108, 122.88, 125, 133.330, 148.35, 148.5, 150, 155.52, 156.25, 161.1328125, 200, 312.5, and 400
• Device can support any frequency between 1MHz to 400MHz. Contact TI representative for any frequency and samples needed

Texas Instruments’ Bulk-Acoustic Wave (BAW) is a micro-resonator technology that enables integration of high-precision BAW resonator directly into packages with ultra-low jitter clock circuitry. BAW is fully designed and manufactured at TI factories like other silicon-based fabrication processes.

The LMK6x device is an ultra-low jitter, fixed-frequency oscillator which incorporates the BAW as the resonator source. The device is factory-programmed per specific operation mode, including frequency, voltage, output type, and function pin. With a high-performance fractional frequency divider, the LMK6x is capable of producing any frequency within the specified range providing a single device family for all frequency needs.

The high-performance clocking, mechanical stability, flexibility, and small package options for this device are designed for reference and core clocks in high-speed SERDES used in telecommunications, data and enterprise network, and industrial applications.
