LM4040B20IDCKR

• Fixed output voltages of 2.048V, 2.5V, 3V, 4.096V, 5V, 8.192V, and 10V
• Tight output tolerances and low temperature coefficient
  • Maximum 0.1%, 100ppm/°C – A Grade
  • Maximum 0.2%, 100ppm/°C – B Grade
  • Maximum 0.5%, 100ppm/°C – C Grade
  • Maximum 1.0%, 150ppm/°C – D Grade
• Low output noise: 35µVRMS typical
• Wide operating current range: 45µA typical to 15mA
• Stable with all capacitive loads; no output capacitor required
• Available in extended temperature range: –40°C to 125°C

The LM4040 series of shunt voltage references are versatile, easy-to-use references that cater to a vast array of applications. The 2-pin fixed-output device requires no external capacitors for operation and is stable with all capacitive loads. Additionally, the reference offers low dynamic impedance, low noise, and low temperature coefficient to maintain a stable output voltage over a wide range of operating currents and temperatures. The LM4040 uses fuse and Zener-zap reverse breakdown voltage trim during wafer sort to offer four output voltage tolerances, ranging from 0.1% (maximum) for the A grade to 1% (maximum) for the D grade. Thus, a great deal of flexibility is offered to designers in choosing the best cost-to-performance ratio for their applications.

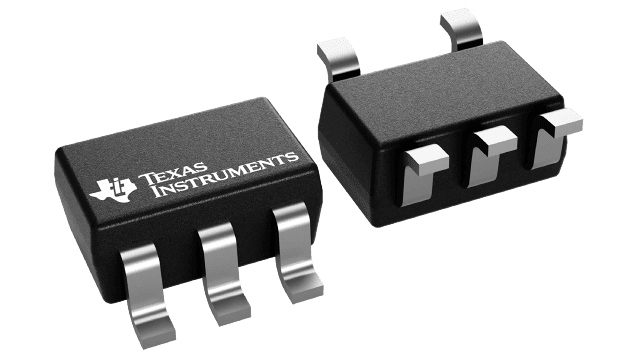

Packaged in space-saving SC-70 and SOT-23-3 packages and requiring a minimum current of 45µA (typical), the LM4040 also is designed for portable applications. The LM4040xI is characterized for operation over an ambient temperature range of –40°C to 85°C. The LM4040xQ is characterized for operation over an ambient temperature range of –40°C to 125°C.
