LM386MX-1/NOPB
700-mW, mono, 5- to 18-V, analog input Class-AB audio amplifier
Factory Direct Sales, Lower Price for Bulk Purchase
Min. Order: 2500

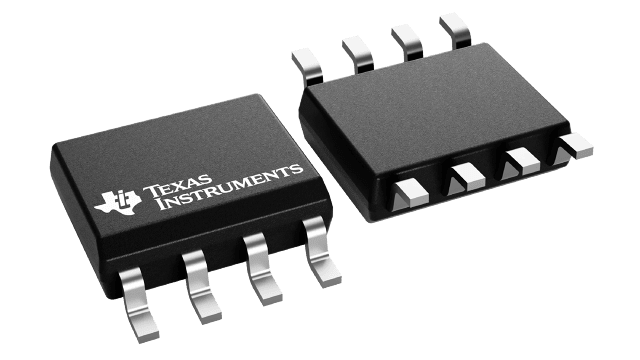

Packaging information
Package | Pins
SOIC (D) | 8
Operating temperature range (°C)
0 to 70
Package qty | Carrier
2,500/Reel
Description
Reviews
Features for the LM386
- Battery Operation
- Minimum External Parts
- Wide Supply Voltage Range: 4 V–12 V or 5 V–18 V
- Low Quiescent Current Drain: 4 mA
- Voltage Gains from 20 to 200
- Ground-Referenced Input
- Self-Centering Output Quiescent Voltage
- Low Distortion: 0.2% (A V = 20, V S = 6 V, R L = 8 Ω, P O = 125 mW, f = 1 kHz)
- Available in 8-Pin MSOP Package
Description for the LM386
The LM386M-1 and LM386MX-1 are power amplifiers designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 increases the gain to any value from 20 to 200.
The inputs are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24 mW when operating from a 6-V supply, making the LM386M-1 and LM386MX-1 prefered for battery operation.
