ISO7710DR

• 100Mbps data rate
• Robust isolation barrier:
  • >30-year projected lifetime at 1500VRMS working voltage
  • Up to 5000VRMS isolation rating
  • Up to 12.8kV surge capability
  • ±100kV/µs typical CMTI
• Wide supply range: 2.25V to 5.5V
• 2.25V to 5.5V Level translation
• Default output high (ISO7710) and low (ISO7710F) options
• Wide temperature range: –55°C to 125°C
• Low power consumption, typical 1.7mA at 1Mbps
• Low propagation delay: 11ns Typical (5V Supplies)
• Robust electromagnetic compatibility (EMC)
  • System-level ESD, EFT, and surge immunity
  • ±8kV IEC 61000-4-2 contact discharge protection across isolation barrier
  • Low emissions
• Wide-SOIC (DW-16) and narrow-SOIC (D-8) package options
• Automotive version available: ISO7710-Q1
• Safety-related Certifications
  • VDE reinforced insulation per DIN EN IEC 60747-17 (VDE 0884-17)
  • UL 1577 component recognition program
  • IEC 62368-1, IEC 61010-1, IEC 60601-1 and GB 4943.1 certifications

The ISO7710 device is a high-performance, single-channel digital isolator with 5000VRMS (DW package) and 3000VRMS (D package) isolation ratings per UL 1577. This device is also certified by VDE, TUV, CSA, and CQC.

The ISO7710 device provides high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/Os. The isolation channel has a logic input and output buffer separated by a double capacitive silicon dioxide (SiO2) insulation barrier. In the event of input power or signal loss, default output is high for a device without suffix F and low for a device with suffix F. See the Device Functional Modes section for further details.

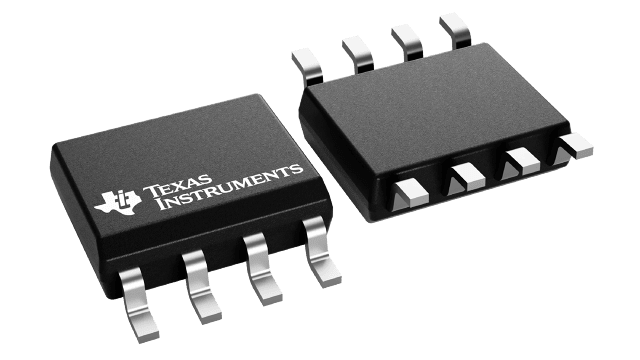

Used in conjunction with isolated power supplies, the device helps prevent noise currents on data buses, such as RS-485, RS-232, and CAN , or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. Through innovative chip design and layout techniques, the electromagnetic compatibility of the ISO7710 device has been significantly enhanced to ease system-level ESD, EFT, surge, and emissions compliance. The ISO7710 device is available in 16-pin SOIC wide-body (DW) and 8-pin SOIC narrow-body (D) packages.
