ESD2CANFD24DBZRQ1

• IEC 61000-4-2 level 4 ESD protection:
  • ±30-kV, ±25-kV or ±20-kV contact discharge
  • ±30-kV, ±25-kV or ±20-kV air-gap discharge
• ISO 10605 (330 pF, 330 Ω) ESD protection:
  • ±30-kV, ±25-kV or ±20-kV contact discharge
  • ±30-kV, ±25-kV or ±20-kV air-gap discharge
• Tested in compliance to IEC 61000-4-5
• 24 V working voltage
• Bidirectional ESD protection
• 2-channel device provides complete ESD protection with single component
• Low clamping voltage protects downstream components
• AEC-Q101 qualified
• I/O capacitance = 3 pF, 2.5 pF, or 1.7 pF (typical)

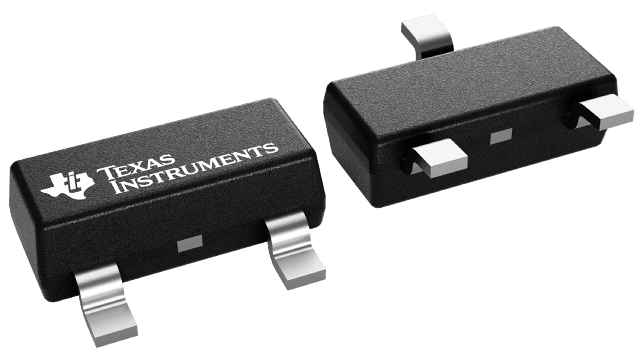

• SOT-23 (DBZ) small, standard, common footprint
• SOT-323, SC-70 (DCK) very small, standard, space saving, common footprint
• Leaded packages used for automatic optical inspection (AOI)

The ESD2CANxx24-Q1 is a bidirectional ESD protection diode for Controller Area Network (CAN) interface protection. The ESD2CANxx24-Q1 is rated to dissipate contact ESD strikes beyond the maximum level specified in the ISO 10605 automotive standard (±30-kV Contact, ±30-kV Airgap). The low dynamic resistance and low clamping voltage enables system level protection against transient events. This protection is key as automotive systems require a high level of robustness and reliability for safety applications.

This device features a low IO capacitance per channel and a pin-out to suit two automotive CAN bus lines (CANH and CANL) from the damage caused by ElectroStatic Discharge (ESD) and other transients. Additionally, the 3 pF (typical) or less line capacitance of the ESD2CANxx24-Q1 is suitable for CAN, CANFD, CAN SiC, and CAN-XL applications that can support data rates up to 10 Mbps.

The ESD2CANxx24-Q1 is offered in two leaded packages for easy flow through routing.
