DRV8873SPWPR

• H-Bridge Motor Driver
  • Drives One DC Motor, One Winding of a Stepper Motor, or Solenoid Loads
• 4.5-V to 38-V Operating Voltage Range
• 10-A Peak Current Drive
• Low HS + LS RDS(ON)
  • 150 mΩ at TJ = 25°C, 13.5 V
  • 250 mΩ at TJ = 150°C, 13.5 V
• Current Mirror for Output Current Sensing
• Configurable Control Interface
  • PH/EN
  • PWM (IN1/IN2)
  • Independent Half-Bridge Control
• Supports 1.8-V, 3.3-V, 5-V Logic Inputs
• SPI or Hardware Interface Options
• Low-Power Sleep Mode (10 µA)
• Small Package and Footprint

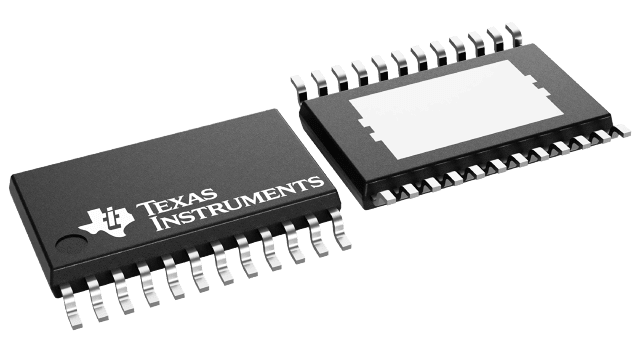

  • 24 HTSSOP PowerPAD™ IC Package
• Protection Features
  • VM Undervoltage Lockout (UVLO)
  • Charge Pump Undervoltage (CPUV)
  • Overcurrent Protection (OCP)
  • Output short to battery and short to ground protection
  • Open Load Detection
  • Thermal Shutdown (TSD)
  • Fault Condition Output (nFAULT / SPI)

The DRV8873 device is an integrated driver IC for driving a brushed DC motor in industrial applications. Two logic inputs control the H-bridge driver, which consists of four N-channel MOSFETs that drive motors bi-directionally with up to 10-A peak current. The device operates from a single power supply and supports a wide input supply range from 4.5 V to 38 V.

A PH/EN or PWM interface allows simple interfacing to controller circuits. Alternatively, independent half-bridge control is available to drive two solenoid loads.

A current mirror allows the controller to monitor the load current. This mirror approximates the current through the high-side FETs, and does not require a high-power resistor for sensing the current.

A low-power sleep mode is provided to achieve very-low quiescent current draw by shutting down much of the internal circuitry. Internal protection functions are provided for undervoltage lockout, charge pump faults, overcurrent protection, short-circuit protection, open-load detection, and overtemperature. Fault conditions are indicated on an nFAULT pin and through the SPI registers.
