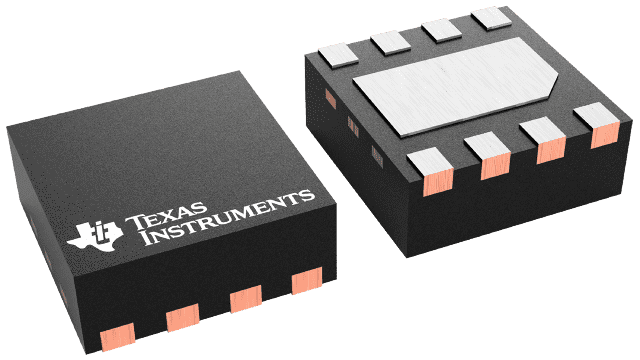

DRV8210PDSGR

• N-channel H-bridge motor driver
  • MOSFET on-resistance: HS + LS 1 Ω
  • Drives one bidirectional brushed DC motor
  • One single- or dual-coil latching relay
• 1.65-V to 11-V operating supply voltage range
• High output current capability: 1.76-A peak

• Standard PWM Interface (IN1/IN2)

• Supports 1.8-V, 3.3-V, and 5-V logic inputs
• Ultra low-power sleep mode
  • <84.5 nA @ VVM = 5 V, VVCC = 3.3 V, TJ = 25°C
  • Pin-to-pin with DRV8837 & DRV8837C
• Protection features
  • Undervoltage lockout (UVLO)
  • Overcurrent protection (OCP)
  • Thermal shutdown (TSD)
• Family of devices. See Section 5 for details.
  • DRV8210: 1.65-11 V, 1 Ω, multiple interfaces
  • DRV8210P: Sleep pin, PWM interface
  • DRV8212: 1.65-11 V, 280 mΩ, multiple interfaces
  • DRV8212P: Sleep pin, PWM interface
  • DRV8220: 4.5-18 V, 1 Ω, multiple interfaces

The DRV8210P is an integrated motor driver with four N-channel power FETs, charge pump regulator, and protection circuitry. The tripler charge pump architecture allows the device to operate down to 1.65 V to accommodate 1.8-V supply rails and low-battery conditions. The charge pump integrates all capacitors to reduce the overall solution size of the motor driver on a PCB and allows for 100% duty cycle operation.

The DRV8210P supports an industry standard PWM (IN1/IN2) control interface. The nSLEEP pin controls a low-power sleep mode which achieves ultra-low quiescent current draw by disabling the internal circuitry.

The device can supply up to 1.76-A peak output current. It operates with a supply voltage from 1.65 V to 5.5 V.

The driver offers robust internal protection features include supply undervoltage lockout (UVLO), output overcurrent (OCP), and device overtemperature (TSD).

The DRV8210P is part of a family of devices which come in pin-to-pin scalable RDS(on) and supply voltage options to support various loads and supply rails with minimal design changes. See Section 5 for information on the devices in this family.
