DRV5056Z1QDBZR

• Unipolar linear hall effect magnetic sensor
• Operates from 3.3-V and 5-V power supplies
• Analog output with 0.6-V quiescent offset:
  • Maximizes voltage swing for high accuracy
• Magnetic sensitivity options (at VCC = 5 V):
  • A1/Z1: 200 mV/mT, 20-mT range
  • A2/Z2: 100 mV/mT, 39-mT range
  • A3/Z3: 50 mV/mT, 79-mT range
  • A4/Z4: 25 mV/mT, 158-mT range
  • A6: 100 mV/mT, 39-mT range
• Fast 20-kHz sensing bandwidth
• Low-noise output with ±1-mA drive
• Compensation for magnet temperature drift for A1/A2/A3/A4/A6 versions and None for the Z1/Z2/Z3/Z4 versions
• Standard industry packages:

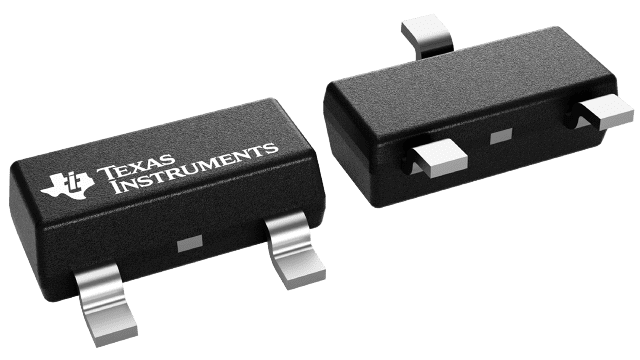

  • Surface-mount SOT-23
  • Through-hole TO-92

The DRV5056 is a linear Hall effect sensor that responds proportionally to flux density of a magnetic south pole. The device can be used for accurate position sensing in a wide range of applications.

Featuring a unipolar magnetic response, the analog output drives 0.6 V when no magnetic field is present, and increases when a south magnetic pole is applied. This response maximizes the output dynamic range in applications that sense one magnetic pole. Four sensitivity options further maximize the output swing based on the required sensing range.
