DAC43701DSGR

• 1 LSB INL and DNL (10-bit and 8-bit)
• Wide operating range
  • Power supply: 1.8 V to 5.5 V
  • Temperature range: –40°C to +125°C
• General-purpose input (GPI) based function trigger
• PMBus™ compatible I2C interface
  • Standard, fast, and fast mode plus
  • Four device address options configured using the broadcast address
  • 1.62-V VIH with VDD = 5.5 V
• User-programmable nonvolatile memory (NVM/EEPROM)
  • Save and recall all register settings
• Programmable waveform generation: Square, triangular, and sawtooth
• Pulse-width modulation (PWM) output using triangular waveform and FB pin
• Preprogrammed medical-alarm tone-generation mode: low-, medium-, and high-priority alarms
• Digital slew rate control
• Internal reference
• Very low power: 0.2 mA at 1.8 V
• Flexible start-up: High impedance or 10K-GND

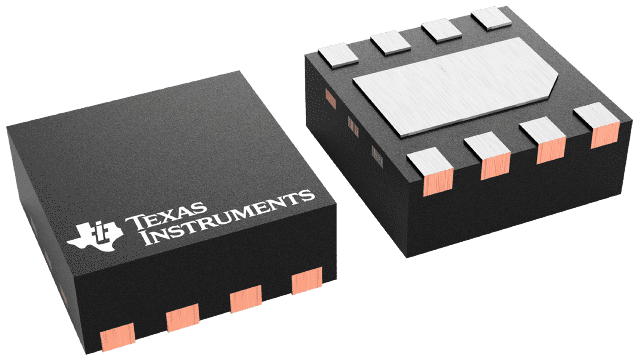

• Tiny package: 8-pin WSON (2 mm × 2 mm)

The 10-bit DAC53701 and 8-bit DAC43701 (DACx3701) are a pin-compatible family of buffered voltage-output smart digital-to-analog converters (DACs). These devices consume very low power, and are available in a tiny 8-pin WSON package. The feature set combined with the tiny package and low power make the DACx3701 an excellent choice for applications such as appliance door fade-in fade-out, processorless LED dimming with PWM input, general-purpose bias point generation, voltage margining and scaling, PWM signal generation, and medical alarm tone generation.

These devices have nonvolatile memory (NVM), an internal reference, a PMBus-compatible I2C interface, and a general-purpose input. The DACx3701 operates with either an internal reference or with the power supply as a reference, and provides a full-scale output of 1.8 V to 5.5 V.

The DACx3701 are smart DAC devices because of their advanced integrated features. With force-sense output, GPI based function trigger, medical alarm, PWM output, and NVM capabilities, smart DACs enable system performance and control without the use of software.
