DAC43401DSGRQ1

• AEC-Q100 qualified for automotive applications:
  • Temperature grade 1: –40°C to +125°C, TA
• 1 LSB INL and DNL (10-bit and 8-bit)
• Wide operating range:
  • Power supply: 1.8 V to 5.5 V
• PMBus™ compatible I2C interface
  • Standard, fast, and fast mode plus
  • Four slave address options configured by A0 pin
  • 1.62-V VIH with VDD = 5.5 V
• User-programmable nonvolatile memory (NVM, EEPROM)
  • Save and recall all register settings
• Programmable waveform generation: Square, ramp, and sawtooth
• Pulse-width modulation (PWM) output using triangular waveform and FB pin
• Digital slew-rate control
• Internal reference
• Very-low power: 0.2 mA at 1.8 V
• Flexible startup: High impedance or 10K-GND

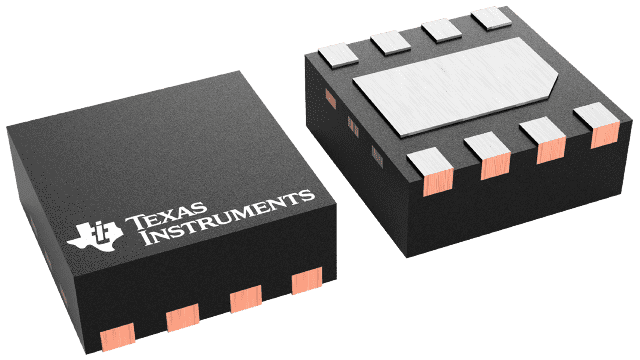

• Tiny package: 8-pin WSON (2 mm × 2 mm)

The 10-bit DAC53401-Q1 and 8-bit DAC43401-Q1 (DACx3401-Q1) are a pin-compatible family of automotive, buffered, voltage-output, smart digital-to-analog converters (DACs). These devices consume very low power, and are available in a tiny 8-pin WSON package. The feature set, combined with the tiny package and low power, make the DACx3401-Q1 an excellent choice for applications such as LED and general-purpose bias point generation, power supply control, and PWM signal generation.

These devices have nonvolatile memory (NVM), an internal reference, and a PMBus-compatible I2C interface. The DACx3401-Q1 operates with either an internal reference or the power supply as a reference, and provides full-scale output of 1.8 V to 5.5 V. The devices communicate through the I2C interface. These devices support I2C standard mode, fast mode, and fast mode plus.

The DACx3401-Q1 are smart DAC devices because of their advanced integrated features. The force-sense output, PWM output, and NVM capabilities of these smart DACs enable system performance and control without the use of software.
