The TPDxE05U06 is a family of unidirectional Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diodes with ultra-low capacitance. Each device can dissipate ESD strikes above the maximum level specified by the IEC 61000-4-2 international standard. The TPDxE05U06 ultra-low loading capacitance makes the device and excellent choice for protecting any high-speed signal pins.

Typical applications for TPDxE05U06 includes high speed signal lines in HDMI 1.4b, HDMI 2.0, USB 3.0, MHL, LVDS, DisplayPort, PCI-Express, eSata, and V-by-One HS.

Features for the TPD1E05U06

IEC 61000-4-2 level 4 ESD protection
- ±12kV contact discharge
- ±15kV air gap discharge
IEC 61000-4-4 EFT protection
- 80A (5/50ns)
IEC 61000-4-5 surge protection
- 2.5A (8/20µs)
IO capacitance 0.42pF to 0.5pF (typical)
DC breakdown voltage 6.5V (minimum)
Ultra low leakage current 10nA (maximum)
Low ESD clamping voltage
Industrial temperature range: –40°C to +125°C
Easy straight-through routing packages

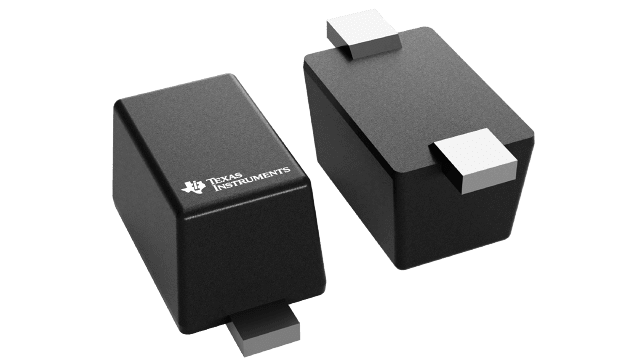

Industry standard SOD-523 package (1.60mm × 0.80mm × 0.65mm)

Detailed Design of TPD1E05U06DYAR Protection Diode

The TPD1E05U06DYAR’s performance stems from meticulous engineering, with the SOT5*3-2 package playing a key role in its functionality:

Protection Core: As a unidirectional Transient Voltage Suppressor (TVS) Protection Diode, it activates only during voltage spikes, thanks to a 6.5V minimum DC breakdown voltage.
Capacitance Control: Advanced semiconductor fabrication gives the TPD1E05U06DYAR ultra-low capacitance (0.42–0.5pF), making it ideal for high-frequency signals.
Leakage & Thermal Management: The Protection Diode limits leakage current to ≤10nA (max), preserving battery life. During surges, the package dissipates heat rapidly.
Layout Efficiency: The SOT5*3-2 package enables straight-through routing, simplifying PCB design and reducing signal loss.

Expanded Applications of TPD1E05U06DYAR

As a high-performance Protection Diode in the compact SOT5*3-2 package, the TPD1E05U06DYAR goes beyond basic high-speed signal line protection to excel in diverse scenarios where both robustness and signal integrity are critical:

Consumer Electronics: This Protection Diode safeguards 4K/8K smart TVs (HDMI 2.0), gaming consoles (USB 3.0 ports), and laptops (Thunderbolt/PCI-Express slots) from static discharges during daily use. In smartphones, the TPD1E05U06DYAR’s SOT5*3-2 form factor fits seamlessly into tight layouts.
Industrial Settings: In factory automation, the TPD1E05U06DYAR Protection Diode shields LVDS sensor lines and PLC communication ports (eSATA) from ESD in dusty or high-vibration environments.
Automotive Systems: Vehicle infotainment interfaces (HDMI, USB 3.0) and in-vehicle networking lines (V-by-One HS) benefit from the TPD1E05U06DYAR. As a rugged Protection Diode, it withstands ESD from passenger interaction.
Communication Devices: Routers (PCI-Express), fiber optic transceivers, and 5G small cell base stations depend on the TPD1E05U06DYAR to protect high-frequency signal pins.

Core Advantages of TPD1E05U06DYAR Protection Diode

The TPD1E05U06DYAR stands out as a premier Protection Diode, with its SOT5*3-2 package enhancing both performance and design flexibility:

Industry-Leading Protection: As a dedicated Protection Diode, it exceeds IEC 61000-4-2 Level 4 standards, withstanding ±12kV contact discharges and ±15kV air gap discharges.
Signal Integrity Preservation: The TPD1E05U06DYAR’s ultra-low capacitance (0.42–0.5pF typical) makes it ideal for high-speed protocols like HDMI 2.0 (18Gbps) and USB 3.0 (5Gbps).
Energy Efficiency: With ultra-low leakage current (≤10nA max), the TPD1E05U06DYAR Protection Diode minimizes power drain in battery-powered devices.
Design Flexibility: The TPD1E05U06DYAR’s SOT5*3-2 package (1.60mm × 0.80mm × 0.65mm) is a standout feature, fitting into slim devices like wearables or miniaturized industrial sensors.

Targeted Solutions with TPD1E05U06DYAR Protection Diode

Engineers often struggle to balance protection and signal performance, but the TPD1E05U06DYAR—with its SOT5*3-2 package—resolves these trade-offs:

Signal Dropout Prevention: High-speed interfaces (USB 3.0, HDMI 2.0) are prone to ESD-induced glitches. The TPD1E05U06DYAR Protection Diode blocks harmful surges while preserving signal integrity.
Extreme Temperature Reliability: Industrial equipment operates in -40°C to +125°C ranges, where components often fail. The TPD1E05U06DYAR's rugged design ensures consistent performance.
Automotive Durability: Vehicle vibrations and temperature swings test component longevity. The TPD1E05U06DYAR Protection Diode resists mechanical stress, keeping systems functional.

Summary

The TPD1E05U06DYAR—TI’s high-performance Protection Diode in the SOT5*3-2 package—delivers unmatched value by combining ultra-robust ESD protection, ultra-low capacitance, and a compact design. From consumer gadgets to industrial machinery, it safeguards critical high-speed signal lines without compromising performance.
