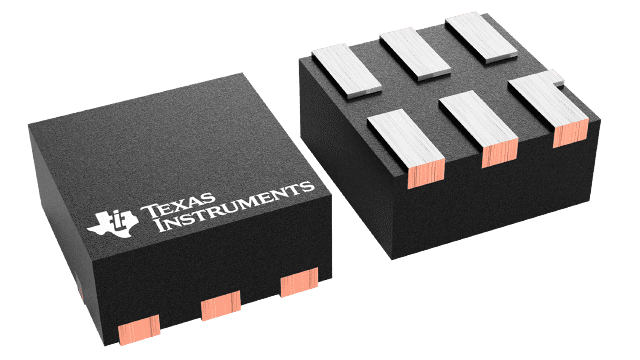

SN74LVC1G07DSF2 | X2SON-6 | Buffer | TI

• Available in the Ultra Small 0.64-mm2 Package (DPW) With 0.5-mm Pitch
• Supports 5-V VCC Operation
• Input and Open-Drain Output Accept Voltages up to 5.5 V
• Can Translate Up or Down
• Max tpd of 4.2 ns at 3.3 V
• Low Power Consumption, 10-µA Max ICC
• ±24-mA Output Drive at 3.3 V
• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
  • 2000-V Human-Body Model (A114-A)
  • 200-V Machine Model (A115-A)
  • 1000-V Charged-Device Model (C101)

This single buffer/driver is designed for 1.65-V to 5.5-V VCC operation.

The output of the SN74LVC1G07 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 32 mA.

The SN74LVC1G07 is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 mm × 0.8 mm.
