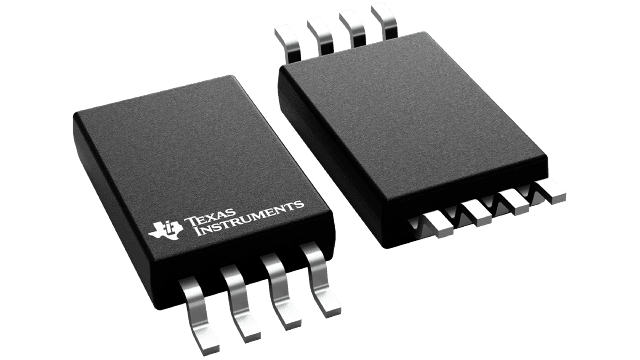

LM2903PWRG4 | TSSOP-8 | Comparator | TI

• NEW LM393B and LM2903B
• Improved specifications of B-version
  • Maximum rating: up to 38V
  • ESD rating (HBM): 2kV
  • Low input offset: 0.37mV
  • Low input bias current: 3.5nA
  • Low supply-current: 200µA per comparator
  • Faster response time of 1µsec
  • Extended temperature range for LM393B
  • Available in tiny 2 x 2mm WSON package
• B-version is drop-in replacement for LM293, LM393 and LM2903, A and V versions
• Common-mode input voltage range includes ground
• Differential input voltage range equal to maximum-rated supply voltage: ±38 V
• Low output saturation voltage
• Output compatible with TTL, MOS, and CMOS

The LM393B and LM2903B devices are the next generation versions of the industry-standard LM393 and LM2903 comparator family. These next generation B-version comparators feature lower offset voltage, higher supply voltage capability, lower supply current, lower input bias current, lower propagation delay, and improved 2 kV ESD performance and input ruggedness through dedicated ESD clamps. The LM393B and LM2903B can drop-in replace the LM293, LM393 and LM2903, for both "A" and "V" grades.

All devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage.
