INA180B1IDBVT | SOT23-5 | Current Sense Amplifier | TI

• Common-mode range (VCM): –0.2 V to +26 V
• High bandwidth: 350 kHz (A1 devices)
• Offset voltage:
  • ±150 µV (maximum) at VCM = 0 V
  • ±500 µV (maximum) at VCM = 12 V
• Output slew rate: 2 V/µs
• Accuracy:
  • ±1% gain error (maximum)
  • 1-µV/°C offset drift (maximum)
• Gain options:
  • 20 V/V (A1 devices)
  • 50 V/V (A2 devices)
  • 100 V/V (A3 devices)
  • 200 V/V (A4 devices)
• Quiescent current: 260 µA maximum (INA180)

The INA180, INA2180, and INA4180 (INAx180) current sense amplifiers are designed for cost-optimized applications. These devices are part of a family of current-sense amplifiers (also called current-shunt monitors) that sense voltage drops across current-sense resistors at common-mode voltages from –0.2 V to +26 V, independent of the supply voltage. The INAx180 integrate a matched resistor gain network in four, fixed-gain device options: 20 V/V, 50 V/V, 100 V/V, or 200 V/V. This matched gain resistor network minimizes gain error and reduces the temperature drift.

All these devices operate from a single 2.7-V to 5.5-V power supply. The single-channel INA180 draws a maximum supply current of 260 µA; whereas, the dual-channel INA2180 draws a maximum supply current of 500 µA, and the quad channel draws a maximum supply current of 900 µA.

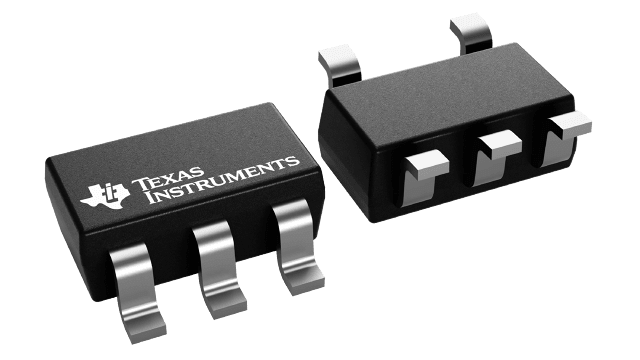

The INA180 is available in a 5-pin, SOT-23 package with two different pin configurations. The INA2180 is available in 8-pin, VSSOP and WSON packages. The INA4180 is available in a 14-pin, TSSOP package. All device options are specified over the extended operating temperature range of –40°C to +125°C.
