The ESD341 is a bidirectional TVS ESD protection diode for HDMI 1.4 circuit protection. The ESD341 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4).

This device features a 0.66 pF (typical) IO capacitance enabling high-speed interface protection up to 3.4 Gbps including support for protocols such as HDMI 1.4b. The low dynamic resistance and low clamping voltage ensure system level protection against transient events.

The 30 kV ESD rating and 5.4 A surge provides robust transient protection in a tiny package for protecting 3.6 V power rails in portable electronics and other space constrained applications such as wearables.

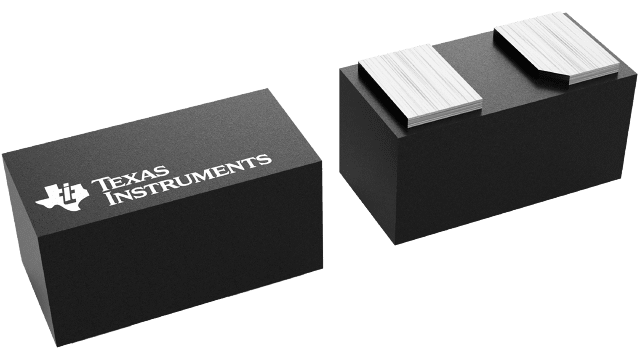

The ESD341 is offered in the industry standard 0201 (DPL) package.

Features for the ESD341

IEC 61000-4-2 level 4 ESD protection
- 30 kV contact discharge
- 30 kV air gap discharge
IEC 61000-4-5 surge protection
- 5.4 A (8/20 µs)
IO capacitance:
- 0.66 pF (typical)
DC breakdown voltage: ±6.2 V (typical)
Ultra low leakage current: 100 nA (maximum)
Low ESD clamping voltage: 10.2 V at 16 A TLP
Low insertion loss: 5 GHz (–3 dB bandwidth, DPL)
Supports high speed interfaces up to 3.4 Gbps
Industrial temperature range: –40°C to +125°C
Space-saving industry standard 0201 footprint (0.6 mm × 0.3 mm × 0.3 mm)

Detailed Design of ESD341 Protection Diode

The ESD341DPLR’s performance stems from precision engineering, with the X2SON-2 package playing a pivotal role:

Bidirectional Protection Architecture: As a bidirectional TVS Protection Diode, it shields against both positive and negative transient voltages—critical for universal interfaces like USB and HDMI, where signal polarity can vary. This design eliminates the need for multiple unidirectional diodes, saving space.
Low-Capacitance Engineering: 0.66pF typical capacitance is achieved via advanced semiconductor fabrication, using ultra-thin epitaxial layers to minimize parasitic capacitance. This ensures high-speed signals (up to 3.4 Gbps) pass through with minimal attenuation.
Clamping Mechanism: A typical ±6.2V DC breakdown voltage ensures the diode remains inactive during normal operation. During surges, its low dynamic resistance (enabling 10.2V clamping at 16A TLP) rapidly diverts excess current, protecting downstream components from voltage spikes.
Package Innovation: The X2SON-2 (0201) package uses high-thermal-conductivity ceramic-filled epoxy, enabling efficient heat dissipation during 5.4A surge events. Its compact dimensions (0.6mm × 0.3mm × 0.3mm) and simplified pinout reduce PCB trace complexity, ideal for tight layouts in wearables.
Insertion Loss Optimization: The diode’s internal structure is engineered to minimize signal loss at high frequencies (up to 5GHz), with a -3dB bandwidth that preserves integrity in high-speed communication lines—vital for HDMI 1.4b and USB 3.0 data transmission.

Expanded Applications of ESD341

The ESD341DPLR, a compact bidirectional Protection Diode in the X2SON-2 package, excels in scenarios demanding robust transient protection within ultra-constrained spaces. Beyond HDMI 1.4b interfaces, its versatility spans:

Wearable Electronics: Protects 3.6V power rails and high-speed signal lines in smartwatches (Bluetooth/BLE interfaces), fitness trackers (heart rate sensor data lines), and hearables (USB-C charging ports), where frequent user contact increases ESD risk.
Portable Devices: Safeguards USB 2.0/3.0 ports in smartphones, tablets, and portable game consoles, as well as MIPI-CSI camera lines in action cameras—critical for preventing data corruption during daily handling.
Medical Gadgets: Shields low-power sensors (e.g., blood glucose monitors, oximeters) and 3.6V power rails in portable medical devices, where reliability is vital and space is extremely limited.
Automotive Interiors: Protects infotainment system peripherals (HDMI 1.4b, USB 2.0) and in-cabin sensor lines (e.g., seat occupancy detectors) in compact automotive PCBs, withstanding vibrations and temperature swings.
IoT Sensors: Secures high-speed communication lines (up to 3.4 Gbps) in industrial IoT devices (e.g., environmental sensors, asset trackers) operating in harsh -40°C to +125°C environments.

Core Advantages of ESD341 Protection Diode

The ESD341DPLR stands out as a premier Protection Diode, with its X2SON-2 package amplifying its suitability for space-constrained designs:

Industry-Leading ESD & Surge Protection: As a dedicated Protection Diode, it delivers IEC 61000-4-2 Level 4 performance with 30kV contact/air gap discharge ratings—far exceeding typical consumer device requirements, ensuring survival against severe static strikes from user interaction or environmental factors. Its 5.4A (8/20µs) surge handling (per IEC 61000-4-5) adds robust defense against power transients.
High-Speed Signal Integrity: With 0.66pF typical capacitance and low insertion loss (-3dB at 5GHz), the ESD341DPLR minimizes signal distortion, making it ideal for 3.4 Gbps interfaces like HDMI 1.4b, USB 3.0, and BLE 5.0—critical for maintaining data accuracy in high-speed communication.
Ultra-Compact Design: The X2SON-2 package (0.6mm × 0.3mm × 0.3mm) follows the 0201 industry standard, enabling integration into wearables, hearables, and miniaturized PCBs where every millimeter of space matters.
Battery-Friendly Operation: Its ultra-low leakage current (100nA max) prevents unnecessary power drain, extending battery life in portable devices like fitness trackers and IoT sensors that rely on long-term autonomy.
Versatile Temperature Range: Rated for -40°C to +125°C, this Protection Diode performs reliably in extreme environments—from frozen industrial warehouses to hot automotive interiors.

Targeted Solutions with ESD341 Protection Diode

Engineers designing compact, high-reliability devices face unique challenges that the ESD341DPLR directly addresses:

Space Limitations in Wearables: Miniaturized gadgets like smartwatches struggle to balance protection and size. The ESD341DPLR’s X2SON-2 package (0.6mm × 0.3mm) fits into sub-1mm PCB spaces, eliminating the need for larger protection components that would compromise design slimness.
ESD Damage in User-Touched Devices: Portable electronics and wearables endure frequent handling, increasing ESD strike risk. With 30kV contact/air discharge protection, this Protection Diode reduces field failures by blocking harmful transients that would otherwise fry sensitive ICs.
Signal Loss in High-Speed Lines: High-speed interfaces (e.g., HDMI 1.4b, USB 3.0) suffer from attenuation with bulky protection components. The ESD341DPLR’s 0.66pF capacitance and 5GHz low insertion loss ensure signals remain intact, preventing data errors or display glitches.
Battery Drain in Low-Power Devices: IoT sensors and wearables depend on long battery life. The diode’s 100nA max leakage current minimizes idle power consumption, solving the common trade-off between protection and energy efficiency.

Summary

The ESD341DPLR—TI’s X2SON-2 Protection Diode—redefines transient protection for space-constrained devices. With 30kV ESD protection, 3.4 Gbps signal support, and an ultra-compact 0201 footprint, it solves critical challenges in wearables, portables, and IoT devices. By balancing robust protection, low power consumption, and high-speed signal integrity, it empowers engineers to design reliable, miniaturized electronics without compromise.
