DRV5013AGQDBZR | SOT23-3 | Hall-effect latch | TI

• Digital bipolar-latch Hall sensor
• Superior temperature stability
  • BOP ±10% over temperature
• Multiple sensitivity options (BOP / BRP)
  • ±1.3mT (FA, see Device Nomenclature)
  • ±2.7mT (AD, ND, see Device Nomenclature)
  • ±6mT (AG, see Device Nomenclature)
  • ±12mT (BC, see Device Nomenclature)
• Supports a wide voltage range
  • 2.5V to 38V
  • No external regulator required
• Wide operating temperature range
  • TA = –40 to +125°C (Q, see Device Nomenclature)
  • TA = –40 to +150°C (E, see Device Nomenclature)
• Open-drain output (30mA sink)
• Fast 35µs power-on time
• Small package and footprint

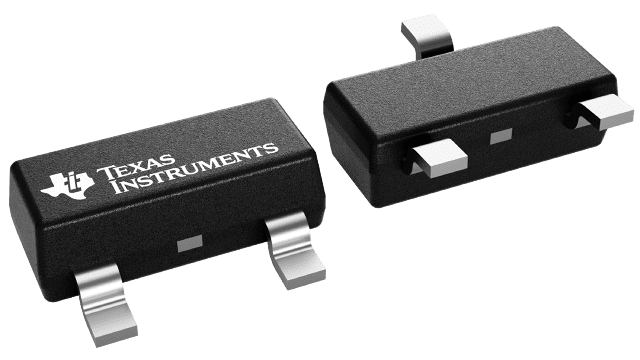

  • Surface mount 3-pin SOT-23 (DBZ)
    • 2.92mm × 2.37mm
  • Through-hole 3-pin TO-92 (LPG, LPE)
    • 4mm × 3.15mm
• Protection features:
  • Reverse supply protection (up to –22V)
  • Supports up to 40V load dump
  • Output short-circuit protection
  • Output current limitation

The DRV5013 device is a chopper-stabilized Hall effect sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.

The magnetic field is indicated through a digital bipolar latch output. The IC has an open-drain output stage with 30-mA current sink capability. A wide operating voltage range from 2.5 V to 38 V with reverse polarity protection up to –22 V makes the device suitable for a wide range of industrial applications.

Internal protection functions are provided for reverse supply conditions, load dump, and output short circuit or overcurrent.
